Description:
The ultrasonic root canal shaker mainly generates high-frequency oscillation signals by high-frequency oscillation circuits and acts on the ultrasonic transducer. It uses the inverse piezoelectric effect to generate ultrasonic vibration, and the working tip is stimulated to generate resonance. It goes deep into the root canal, and uses the various effects generated by ultrasound to drive the drugs or liquids in the root canal to produce ultrasonic flow and cavitation effects, so as to achieve the effect of root canal stains and debris.
Specification
Color: white, black
High frequency: 45kHz ± 5kHz
Output tip main vibration offset: ≤ 120 μ m
Input: 100V~240V 50Hz/60Hz 0.4A MAX
Output power consumption: DC 5V 1A
Battery: 1 500mAh
Sterilization: 134 ° C/0.22mpa, lasting for 3 minutes
Weight: 96g
Two working modes: standard mode and super mode

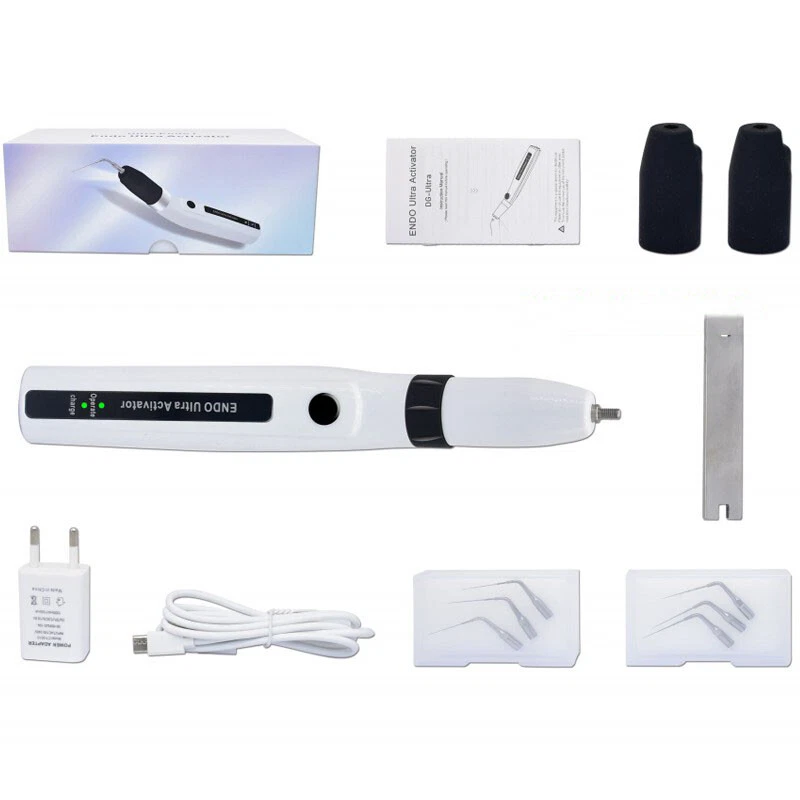

Accessories: wrench, rubber cover, working tip
Working tip specification: 19mm, 21mm
Disinfection and sterilization environment: 134 ℃/0.22mpa
Use environment:
Ambient temperature:+5 ℃~+40 ℃
Relative humidity: 30%~75%
Atmospheric pressure: 70kPa~106Pa
Features
1、The machine head can rotate 360°
2、The operation is simple and efficient, with only one function key to realize the switch on and off and mode switching.
3、The machine has two working mode settings, mode 1: normal mode; Mode 2: Powerful mode.
4、The machine has stable performance, and adopts automatic frequency tracking system to automatically search for the best working state.
5、The working tip, root canal wrench and handle can be disassembled and can withstand 134 ° C high temperature and 0.22Mpa high pressure disinfection.
6、The root canal vibration amplitude is small, does not damage the root canal, and is closer to the root canal bottom. The root canal vibration frequency is high, and the swing washing is more efficient.
